Keith Machinery Corp.

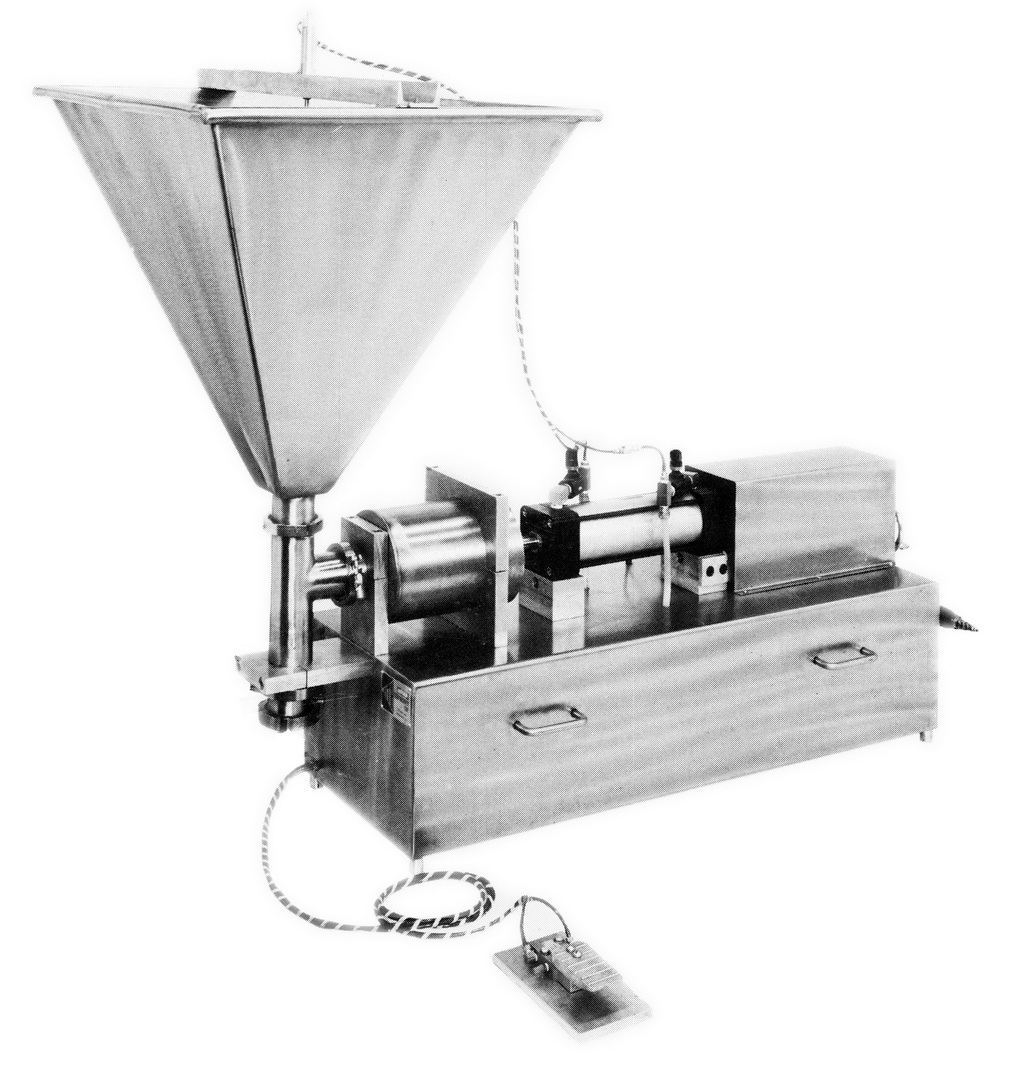

Bench Piston Filler Model SPFS-G


  • Changeover time 4-5 minutes.
  • Provides extremely accurate fill volumes which eliminates costly product giveaway.
  • The unit can be set up for single cycle or continuous operation.
  • Approximate speed of 20 containers per minutes depending on bottle size and product viscosity.
  • 20 gallon stainless steel hopper.
  • Variable speed.
  • Up to 128+ oz. capacity for paint, liquids, creams, pastes.
  • Optional cylinders available for fills as small as 2 oz.

Features of the Bench Piston Filler Model SPFS

  • Stainless Steel Contact Parts
  • Stainless Steel Frame
  • Rugged Construction
  • Easy to Operate and maintain
  • Capable of many years of trouble-free service
  • Quickly adapts to various container sizes, often without change parts
  • The machine can handle a wide variety of liquids and semi-viscous products
  • Drip-free filling to insure a clean operation
  • Economical - low initial cost
  • Versatile - capable of filling jars, cans, bottles, tubes, pails, etc.
  • The unit is capable of being automated when warranted by future production requirements
  • Portable - The machine can be moved easily Sanitary clamp type fittings allow the machine to be dismantled for cleaning and sterilization with little effort.
