Keith Machinery Corp.

10421001

Availability: In stock

$75,000
10421001

10421001

Click on above image to view full picture

You are not logged in. Please choose one of the below options to continue.
Equipment TypeCoating PansInventory#10421001ManufacturerVECTORDiameter52"List Price$75,000LocationLINDENHURST, NY

Details

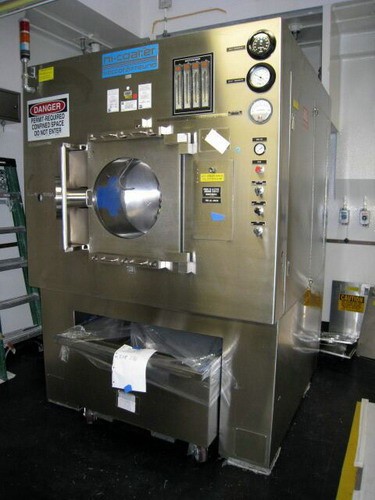

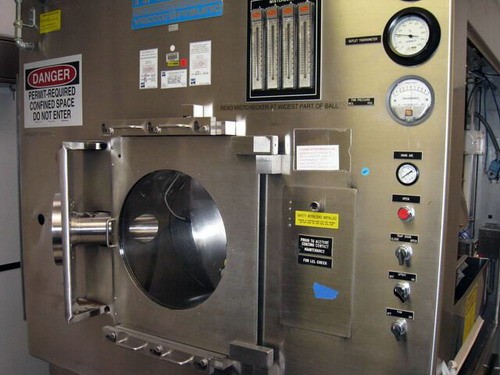

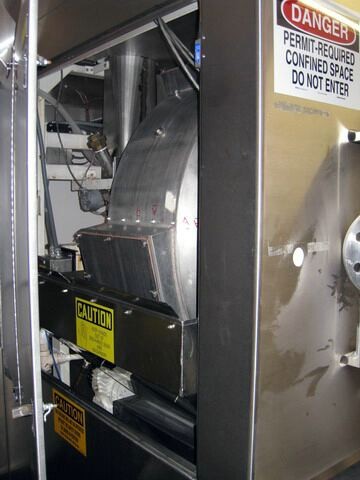

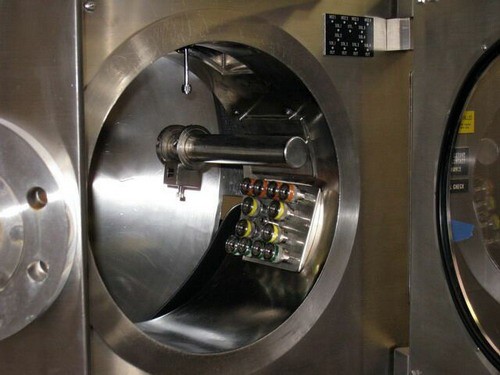

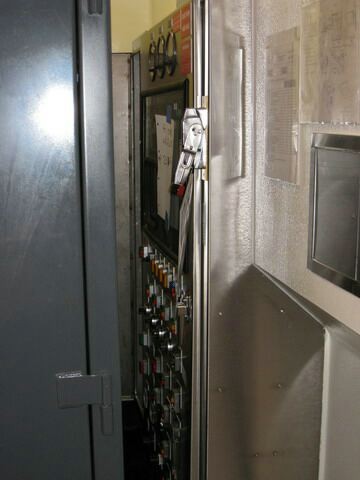

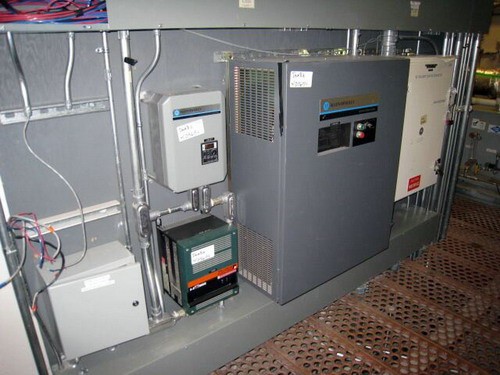

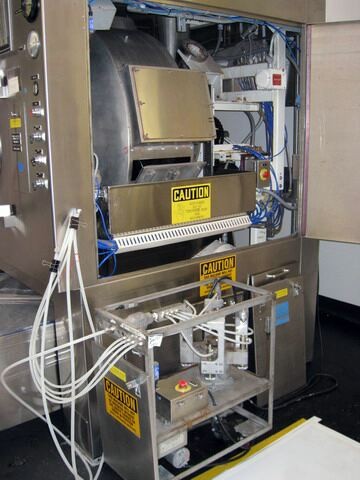

1-Vector 52" Automatic Coating Machine, Hi-Coater, Model HC-130, S/N 43107 HC242. This is a late model Hi-Coater which features 316 stainless steel main coating pan and 304 stainless steel machine cabinet. The unit has wall mounted control panel with AB Panelview 1000 TouchScreen HMI and secondary remote mount control panel; HMI features include pan, spray and air handling controls. Vector standard solution cart with four head peristaltic pumps controlled through machine control panel, 4 standard Vector spray guns with adjustable atomizing and pattern air. Pan mounted mist checkers, temperature gauges, etc. Tablets are discharged through trap door into tablet bin (1 supplied). 25HP exhaust fan included. Air handling and dust collection not included (see options below). Electrical specifications: 460V, 3 Phase, 60Hz. Also includes variable frequency drives for pan motor, inlet air and exhaust. Pan suitable for use with solvents (i.e. acetone, etc.). Batch size = approximately 475 lbs/216 kg (rated at tablet density of .97 g/cm³ at brim volume). Brim volume = 225 liters. Approximate machine weight is 2500/ lbs/1136 kg.

SELLING PRICE, AS IS, FOB LINDENHURST, NY ...$75,000

Keith Machinery can also supply this system with the following added cost turnkey options:

- Steam air handler unit with internal blower and HEPA filters, add $30,000 (estimated)
- Dust Hog or Torit Dust Collector 8 cartridge design, add $15,000-$18,000
- System integration of above components quoted after engineering discussion with purchaser

Contact Information

If you need further assistance, please contact our sales department at 631-957-1200 or by email at sales@keithmachinery.com.

Payment & Shipping Information

Payment Methods:

Company Checks, Certified Checks, Credit Cards and Wire Transfer. Please note that Credit Card payments will incur a 2.5% processing fee. Please note all equipment will not ship until all funds have cleared. Financing is available for the above equipment. Terms available are for 24-72 month payment plans, with a variety of buy-out options. Should you wish to explore this leasing option, please contact our Corporate Headquarters at (631) 957-1200.

Shipping Info:

All equipment is sold "as is, where is". Buyer is responsible for all skidding, crating and shipping charges.

Disclaimer

The information on this website is correct to the best of our knowledge; however, Keith Machinery does not warrant or guarantee accuracy. Keith Machinery strongly recommends an inspection of the equipment prior to purchase. All equipment is sold "as is, where is, with all faults." After market services can be provided by Keith Machinery or it's affiliates at added costs.
