Equipment TypeWrappers/BundlersInventory#12500016ManufacturerSASIBSpeed In CPM250 PPMList Price$45,000LocationLindenhurst, NY
Details

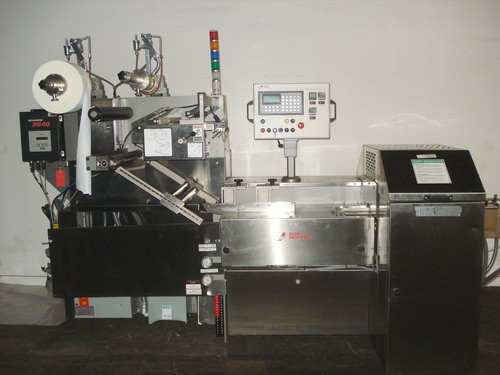

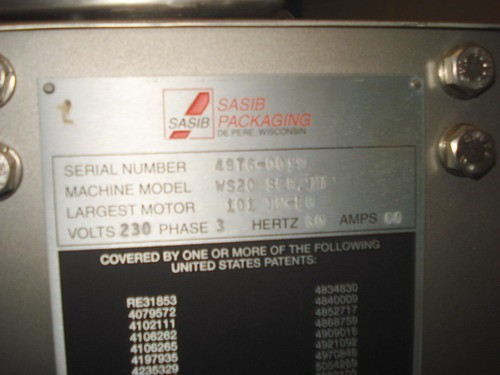

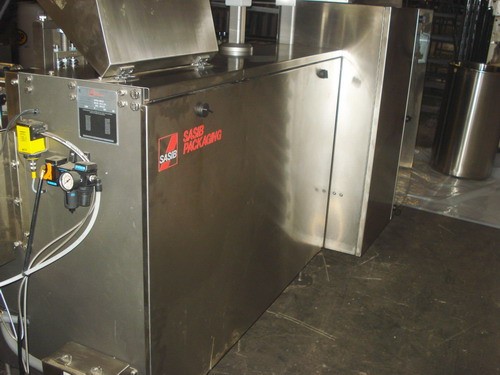

1-Sasib Model WS-20 Series II-RH Multi-Axis Servoflo Horizontal Wrapping Machine, S/N 4976-0019, new 1999, producing packages with fin seals and crimped ends on heat and pressure activated material. Original selling price approximately $180,000 USD. A new infeed conveyor can be supplied on request. The basic 10' infeed conveyor with lug type chain and guide rails is $14,500 additional.

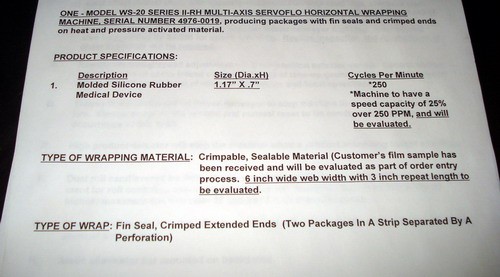

ORIGINAL PRODUCT SPECIFICATIONS:
Description: Medical Device
Size (Dia.xH): 1.17" x .7"
Cycles per minute: 250* (*Machine to have a speed capacity of 25% over 250 PPM)
Type of Wrapping Material: Crimpable, sealable material (customer's film sample has been received and will be evaluated as part of order entry process. 6 inch wide web width with 3 inch repeat length to be evaluated).
Type of Wrap: Fin seal, crimped extended ends (two packages in a strip separated by a perforation).
NOTES:
1. Sasib manufactures main electrical enclosures to NEMA 12 specifications. All enclosures are not NEMA 12.
2. Fastening hardware (nuts, screws, bolts, etc.) on exterior of machine will be of stainless steel construction.
MACHINE TO INCLUDE:
1. Basic right-hand machine configuration with the product flowing from left to right as the operator faces the control panel. Rugged steel frame construction provides smooth operation and machine durability. Cantilevered tube forming section is of sanitary design allowing debris to fall away from internal drive components. Machine base line to be 36 inches, plus or minus 2 inches, in elevation.
2. Original infeed lug conveyor, originally supplied, currently not included.
3. Remote start/stop/speed adjustment via three position selector switch. Control station mounted on end of the infeed conveyor on top of take-up guard. Keyed selector switch on the main control panel of wrapper for remote and local operation.
4. Torque limiter mounted on infeed conveyor to stop machine in the event off a product jam. Manual purge of the system and manual reset to be conducted by operator after occurrence of this fault.
5. High product detector will stop the machine when a product exceeding height specifications is detected.

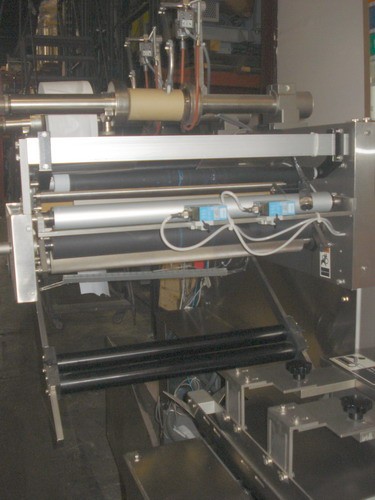

6. Dual roll cantilevered backstand with standard core lock and independent screw adjustment for roll centering accommodates quick roll changes. Maximum roll width 20 inches; maximum roll diameter 16 inches; 3 inch diameter cores.
7. Slack web detector monitors film tension and will automatically shut wrapper off in the event of a film break.
8. Static eliminator bar mounted on backstand.
9. Sasib will provide a collar pin unit with rubber back-up roll assembly on the wrapper backstand. The size and density of the pin holes relative to the package are to be determined by the customer prior to engineering release.
10. Low roll film detectors (one set) with solid blue light for indication. Flashing blue light for maintenance call.
11. Servo controlled powered feed roll system provides consistent film speed control. Features quick release nip roll arrangement for easy film threading.

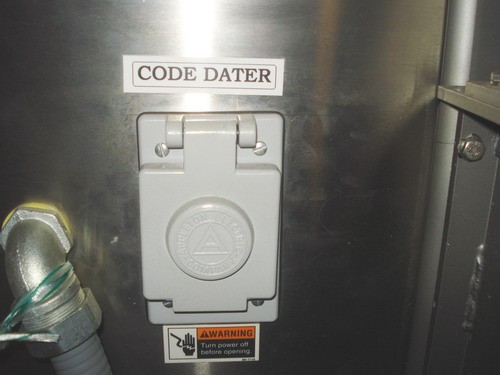

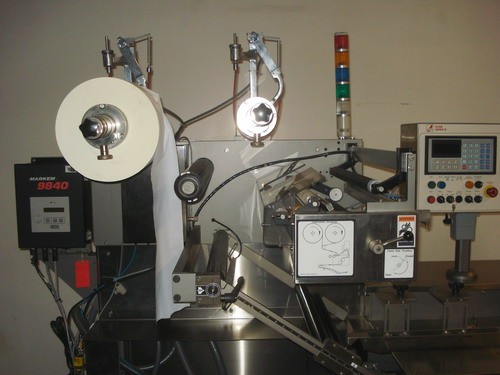

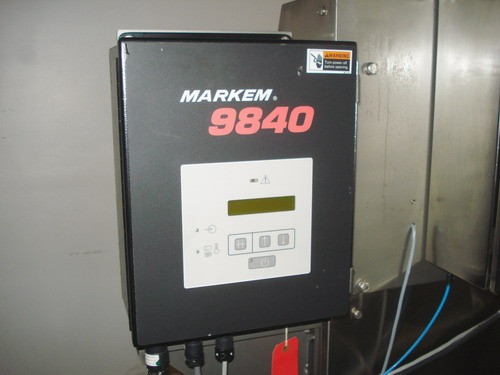

12. Markem Model 9840 Code Dater including hardware and electrical tie-in to the wrapper.

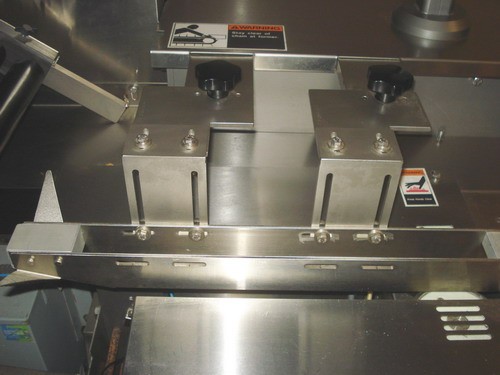

13. One (1) quick release fixed position stainless steel forming box custom designed to accurately for the film around the customer's product.
14. One set of preheat fin wheels is used to make the longitudinal seal. Fin wheel assembly is cantable for better control of package tightness. Adjustable cone pulley drives to fin wheel for optimal film tension control. Insulated fin wheel covers with top plate cut out around wheels.

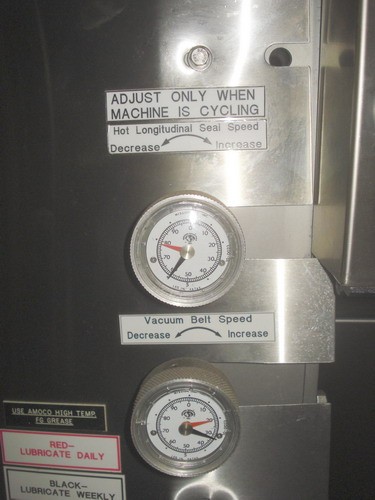

15. Bottom vacuum belt assembly to be provided to assist transfer from last fin wheel assembly to the cutting head.
16. Servo controlled electric eye registration control for accurately positioning printed packaging material on the product.

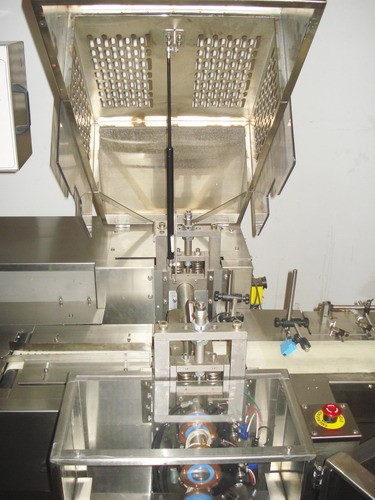

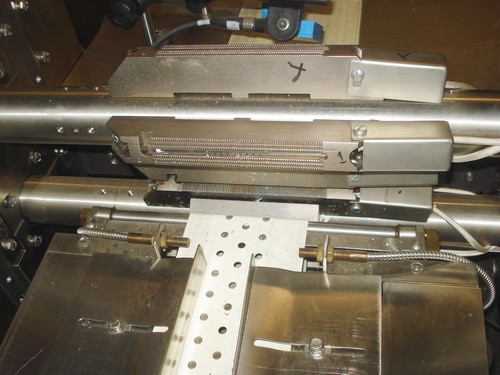

17. Four-up cutting head assembly with ¼ inch wide threaded crimp pattern and shimable style diagonal cut knives to separate strips of two units with serrated cut knives opposite the cut-off knife. Shimable diagonal knife minimizes cutting pressures and extends the knife life.
18. Heaters are mounted in crimpers providing a uniform temperature pattern. Copper slip ring assemblies for power and temperature control assures a good contact is maintained.
19. Servo drove to the cutting head adjusts crimper speed to match film speed and is easily adjusted via keypad entry when changing product lengths.
20. Automatic position stop with crimpers in open position prevents film from burning. Open crimper position can be selected via keypad entry.

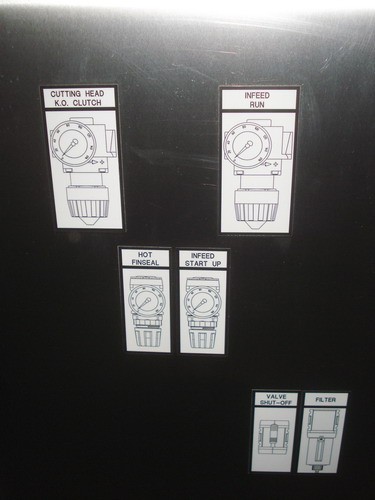

21. Single position knock-out clutch to the cutting head for machine protection should a product jam occur.

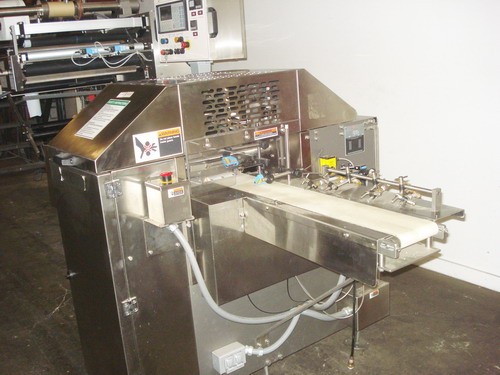

22.Reject system for connected and empty packages for the two compartment package to be mounted on extended discharge conveyor with air manifold on drive side of machine and with reject of discarded product to be toward operator side of machine. Manufacturer's Factory Spliced Package Reject tied into reject system package listed above. System to include a chute for deflection of rejected product - no bin will be provided.

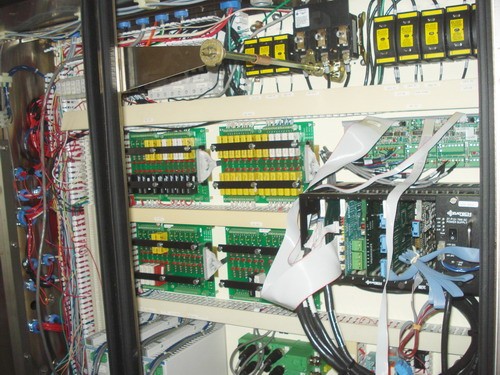

23. Pedestal mounted electrical control station with adjustable position for easy access by machine operator. Product per minute display, total display, fault display, diagnostics system and 8-channel PLS are included.
24. Junction box provided for input signal for pause condition from customer's upstream and downstream equipment which will cause machine cycle stop. After down condition is cleared, input signal to allow wrapper to restart.

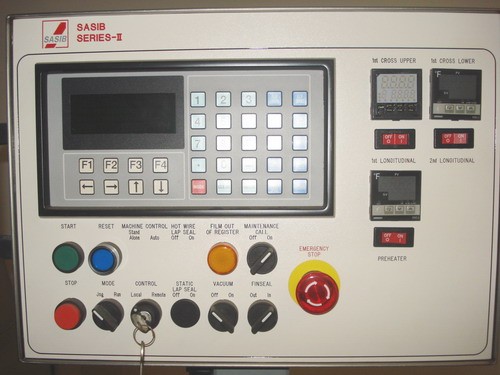

25. Membrane keypad with easy to read 80-character vacuum fluorescent display allows for simple adjustment of machine functions and storage for up to 10 product codes. Communications software and cable connector for horizontal wrapper to be provided. Note: Customer desires communication interface to Allen Bradley Data Highway System utilizing AB DH+. Sasib is supplying the hardware components and the software necessary for client to tie into the wrapper via DH+.

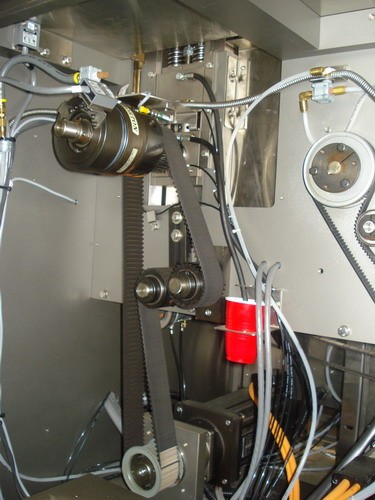

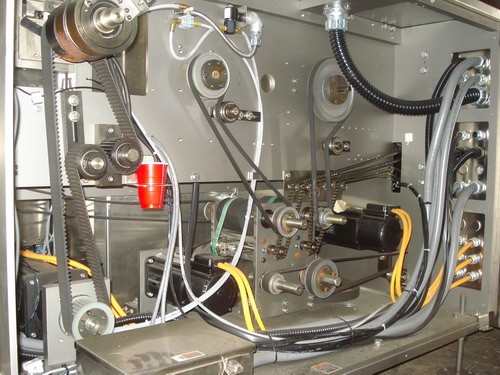

26. Sasib standard Indramat servo motors and amplifiers to be provided.
27. Heater break fault and temperature controller deviation alarm to be provided to signal operator that the temperatures of the crimpers and fin wheel assemblies are not at the correct preset range. Both faults will not allow the machine to start, and will cause an immediate stop if faults are detected by the temperature controller.
28. Standard utility specs: Electrical: 480 volt, 3 phase, 60 Hz. Air: 80 PSIG. Appropriate transformer and one 110 volt duplex receptacle mounted on infeed conveyor to be provided by Sasib.
SELLING PRICE, AS IS, FOB LINDENHURST, NY...$45,000
ORIGINAL PRODUCT SPECIFICATIONS:
Description: Medical Device
Size (Dia.xH): 1.17" x .7"
Cycles per minute: 250* (*Machine to have a speed capacity of 25% over 250 PPM)
Type of Wrapping Material: Crimpable, sealable material (customer's film sample has been received and will be evaluated as part of order entry process. 6 inch wide web width with 3 inch repeat length to be evaluated).
Type of Wrap: Fin seal, crimped extended ends (two packages in a strip separated by a perforation).
NOTES:
1. Sasib manufactures main electrical enclosures to NEMA 12 specifications. All enclosures are not NEMA 12.
2. Fastening hardware (nuts, screws, bolts, etc.) on exterior of machine will be of stainless steel construction.
MACHINE TO INCLUDE:
1. Basic right-hand machine configuration with the product flowing from left to right as the operator faces the control panel. Rugged steel frame construction provides smooth operation and machine durability. Cantilevered tube forming section is of sanitary design allowing debris to fall away from internal drive components. Machine base line to be 36 inches, plus or minus 2 inches, in elevation.
2. Original infeed lug conveyor, originally supplied, currently not included.
3. Remote start/stop/speed adjustment via three position selector switch. Control station mounted on end of the infeed conveyor on top of take-up guard. Keyed selector switch on the main control panel of wrapper for remote and local operation.
4. Torque limiter mounted on infeed conveyor to stop machine in the event off a product jam. Manual purge of the system and manual reset to be conducted by operator after occurrence of this fault.
5. High product detector will stop the machine when a product exceeding height specifications is detected.
6. Dual roll cantilevered backstand with standard core lock and independent screw adjustment for roll centering accommodates quick roll changes. Maximum roll width 20 inches; maximum roll diameter 16 inches; 3 inch diameter cores.
7. Slack web detector monitors film tension and will automatically shut wrapper off in the event of a film break.
8. Static eliminator bar mounted on backstand.
9. Sasib will provide a collar pin unit with rubber back-up roll assembly on the wrapper backstand. The size and density of the pin holes relative to the package are to be determined by the customer prior to engineering release.
10. Low roll film detectors (one set) with solid blue light for indication. Flashing blue light for maintenance call.
11. Servo controlled powered feed roll system provides consistent film speed control. Features quick release nip roll arrangement for easy film threading.
12. Markem Model 9840 Code Dater including hardware and electrical tie-in to the wrapper.
13. One (1) quick release fixed position stainless steel forming box custom designed to accurately for the film around the customer's product.
14. One set of preheat fin wheels is used to make the longitudinal seal. Fin wheel assembly is cantable for better control of package tightness. Adjustable cone pulley drives to fin wheel for optimal film tension control. Insulated fin wheel covers with top plate cut out around wheels.
15. Bottom vacuum belt assembly to be provided to assist transfer from last fin wheel assembly to the cutting head.
16. Servo controlled electric eye registration control for accurately positioning printed packaging material on the product.
17. Four-up cutting head assembly with ¼ inch wide threaded crimp pattern and shimable style diagonal cut knives to separate strips of two units with serrated cut knives opposite the cut-off knife. Shimable diagonal knife minimizes cutting pressures and extends the knife life.
18. Heaters are mounted in crimpers providing a uniform temperature pattern. Copper slip ring assemblies for power and temperature control assures a good contact is maintained.
19. Servo drove to the cutting head adjusts crimper speed to match film speed and is easily adjusted via keypad entry when changing product lengths.
20. Automatic position stop with crimpers in open position prevents film from burning. Open crimper position can be selected via keypad entry.
21. Single position knock-out clutch to the cutting head for machine protection should a product jam occur.
22.Reject system for connected and empty packages for the two compartment package to be mounted on extended discharge conveyor with air manifold on drive side of machine and with reject of discarded product to be toward operator side of machine. Manufacturer's Factory Spliced Package Reject tied into reject system package listed above. System to include a chute for deflection of rejected product - no bin will be provided.
23. Pedestal mounted electrical control station with adjustable position for easy access by machine operator. Product per minute display, total display, fault display, diagnostics system and 8-channel PLS are included.
24. Junction box provided for input signal for pause condition from customer's upstream and downstream equipment which will cause machine cycle stop. After down condition is cleared, input signal to allow wrapper to restart.
25. Membrane keypad with easy to read 80-character vacuum fluorescent display allows for simple adjustment of machine functions and storage for up to 10 product codes. Communications software and cable connector for horizontal wrapper to be provided. Note: Customer desires communication interface to Allen Bradley Data Highway System utilizing AB DH+. Sasib is supplying the hardware components and the software necessary for client to tie into the wrapper via DH+.
26. Sasib standard Indramat servo motors and amplifiers to be provided.
27. Heater break fault and temperature controller deviation alarm to be provided to signal operator that the temperatures of the crimpers and fin wheel assemblies are not at the correct preset range. Both faults will not allow the machine to start, and will cause an immediate stop if faults are detected by the temperature controller.
28. Standard utility specs: Electrical: 480 volt, 3 phase, 60 Hz. Air: 80 PSIG. Appropriate transformer and one 110 volt duplex receptacle mounted on infeed conveyor to be provided by Sasib.
SELLING PRICE, AS IS, FOB LINDENHURST, NY...$45,000
